Boat Nav LED Set

Products

Overview:

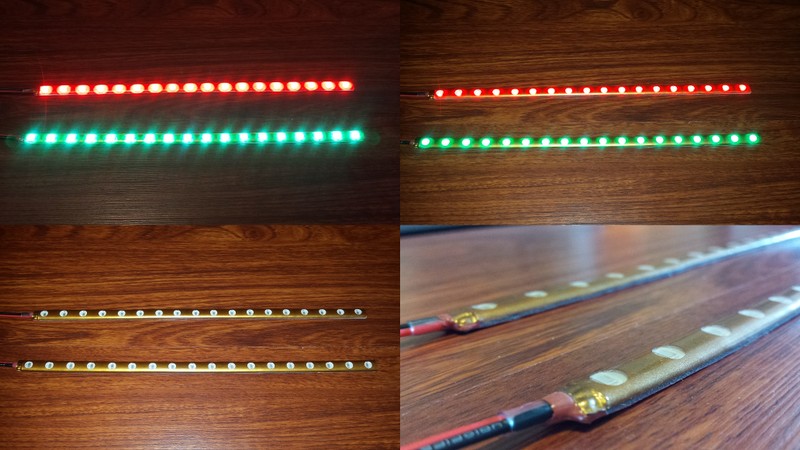

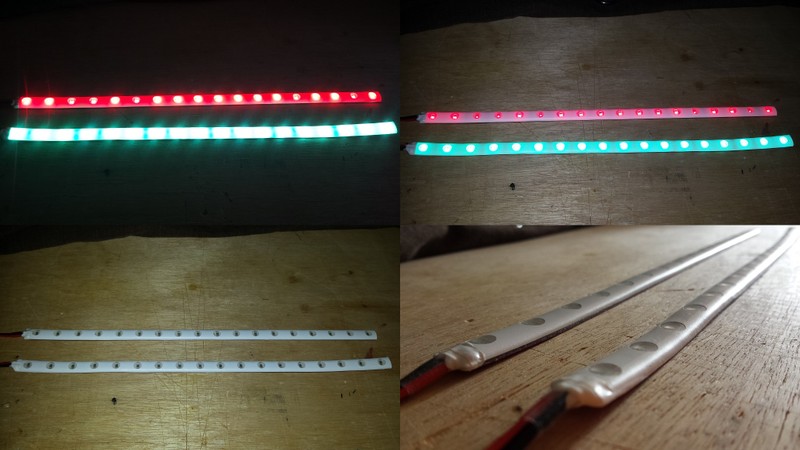

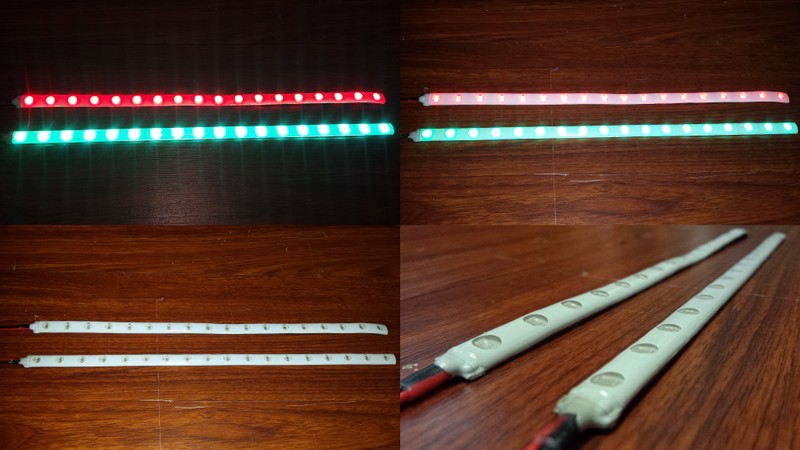

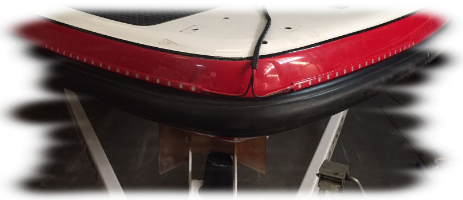

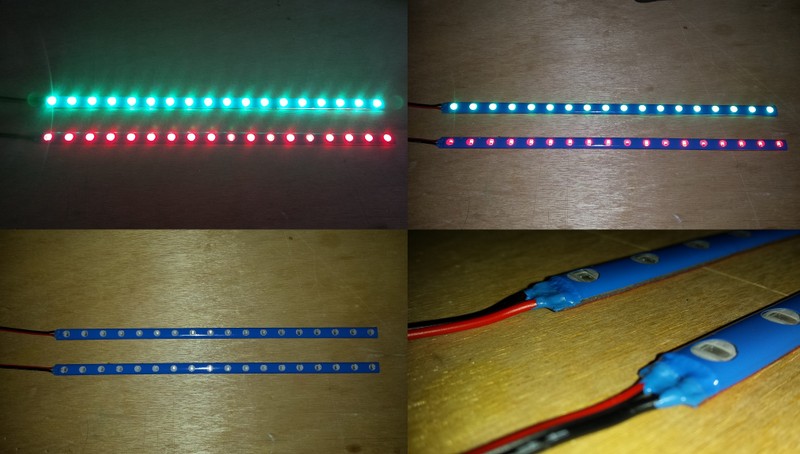

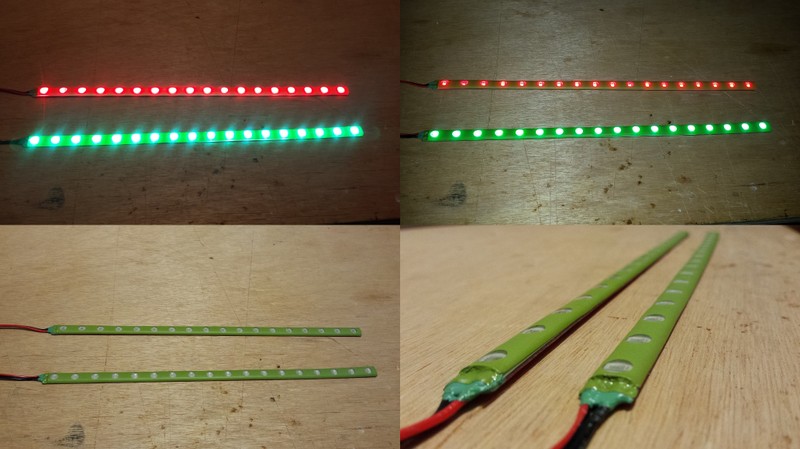

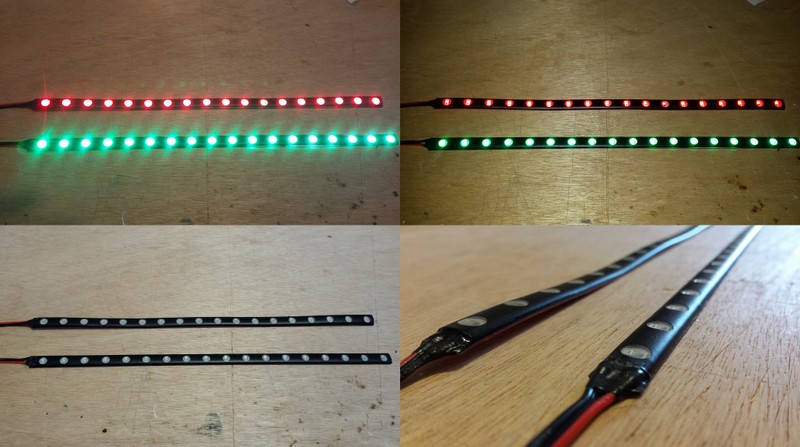

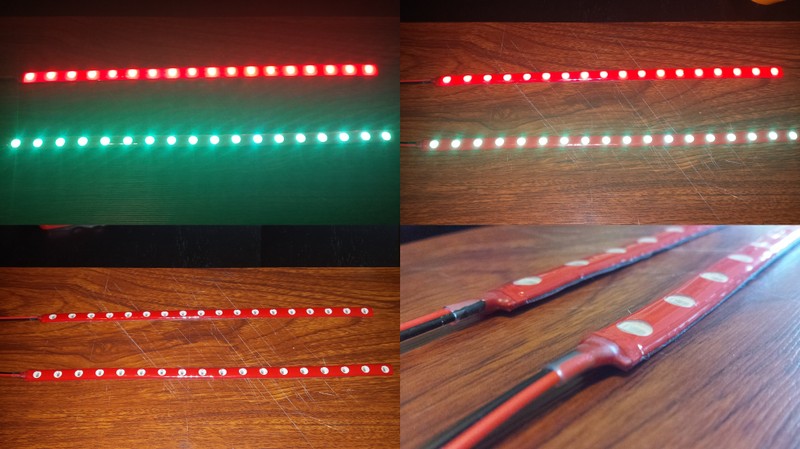

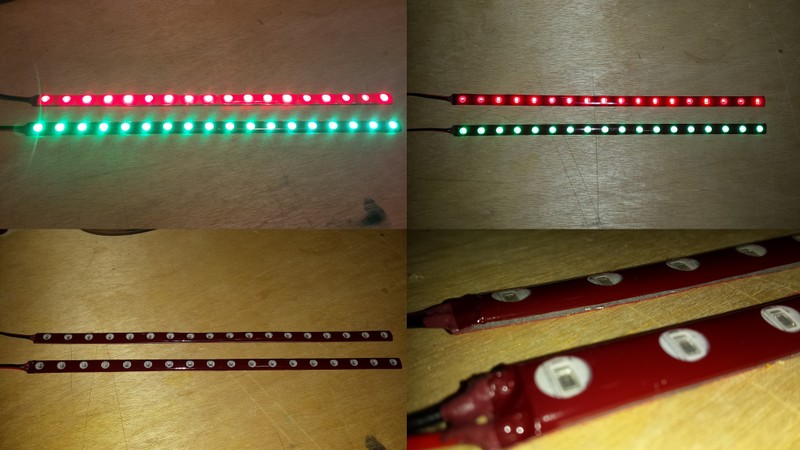

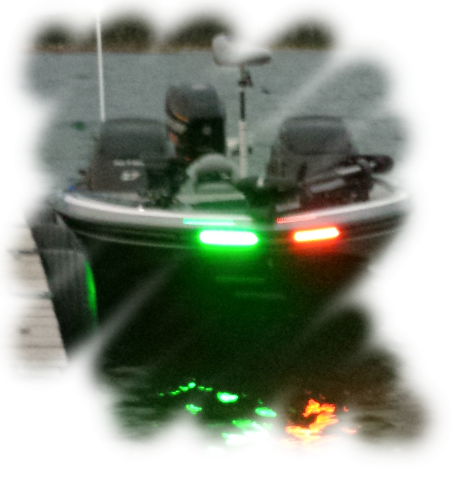

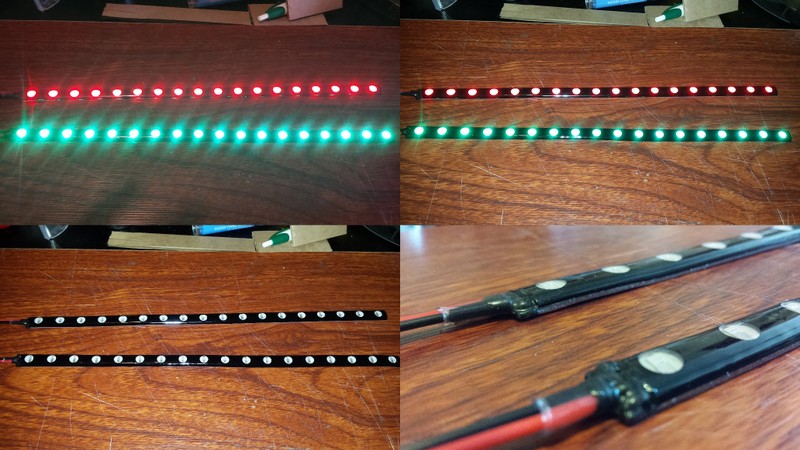

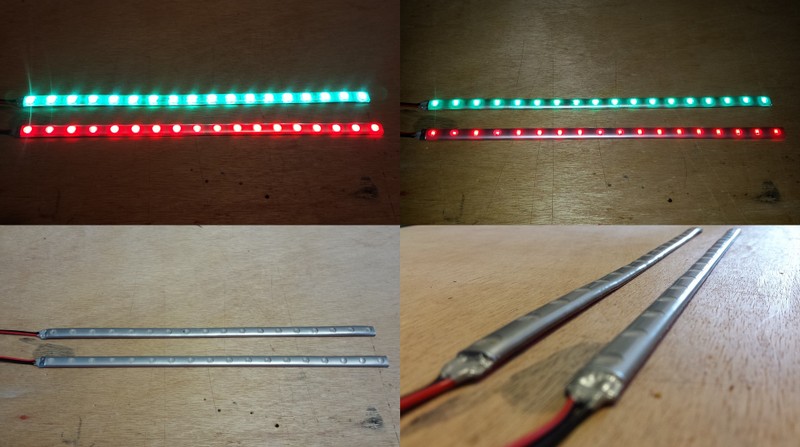

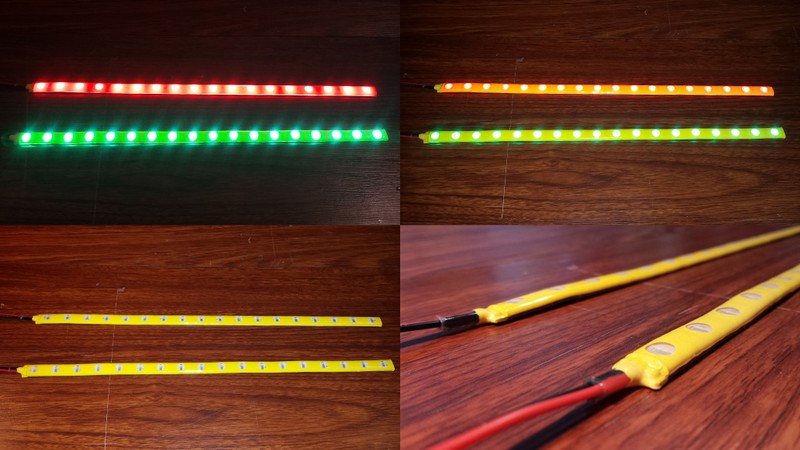

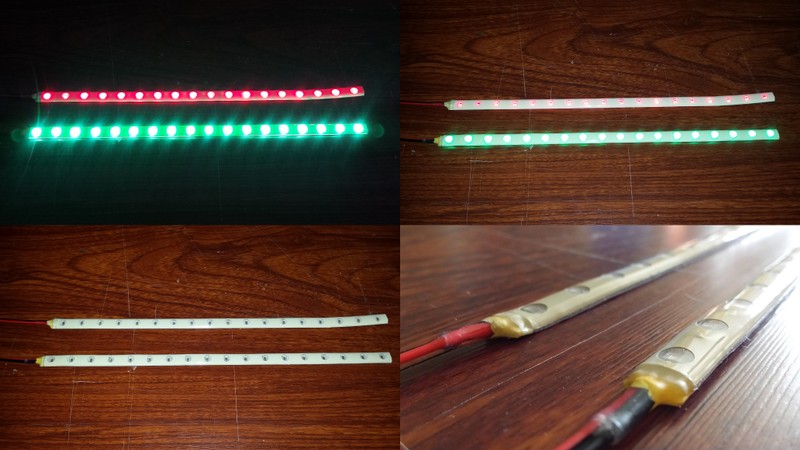

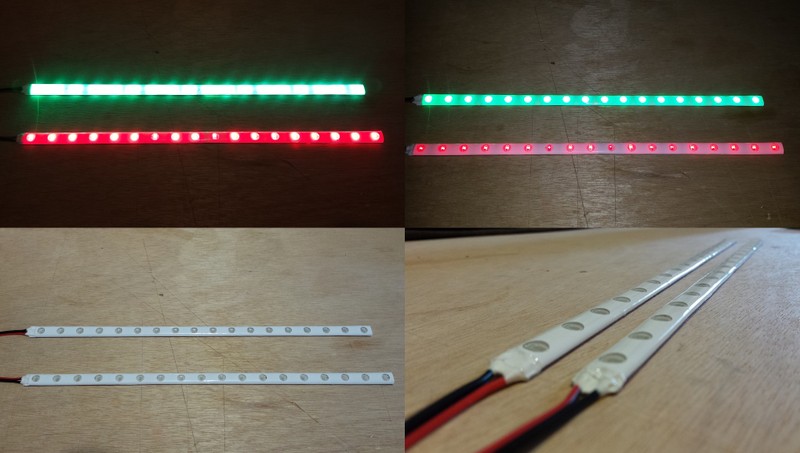

This is for both the Port and Starboard Bow navigation lights.
LED Strips measure just shy of 12", and have a total of 27 total LEDs per strip.
Instead of using heat shrink to seal the connection (WHICH IS NOT WATERPROOF), we use a flexible vulcanized rubber connection.  This ensures the smallest possible seal, while maintaining weather and electrical resistance.

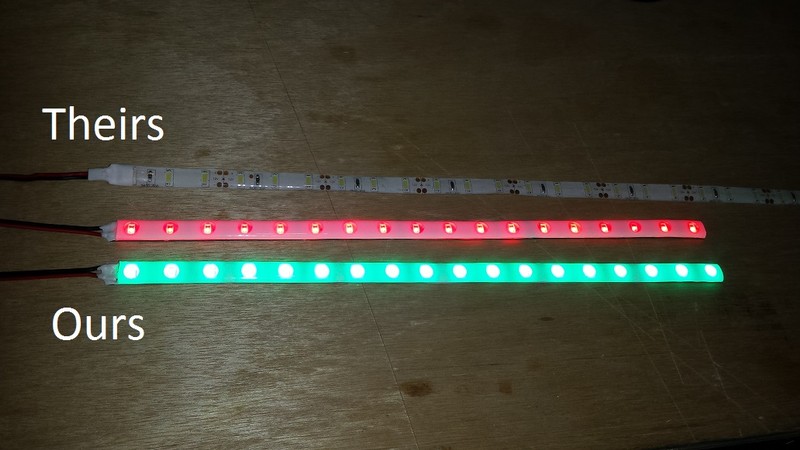

IP-68 (Protected against continuous immersion in water) rated strips. Since they're going on a boat, it makes sense to make them waterproof, not just water resistant like the other sellers.
After stripping the backside of the horrible standard gooey tape, we replace it with 3M Double Sided Weatherproof tape. This tape is MUCH more heat resistant than the stock stuff, holds more per unit area than the stock stuff, and will keep the strip in place for years to come.

Description:
LEDs encased in a silicone covering.
End connections have been sealed using a flexible vulcanized rubber connection, instead of heat shrink tubing.
Backside 3M weatherproof double sided tape (Scotch 414).

Specs and Features:

Voltage: 12V
LED Colors:
Red: 650 nm

Green: 540 nm

Brightness per individual LED:

5630 ≈ 35 Lumen avg

Rating: IP-68 (Protected against continuous immersion in water)
Tape Hold Strength: Rated to 2.3052 lbs / 1.0452 kg, realistically much more.

Dimensions:
Length: (11.81”) / (300mm)
Width: 0.394” / 10mm
Height: 0.150” / 3.82mm
Wire Length: 24”/ 610mm
